Marine gasketed plate heat exchangers
Alfa Laval has been developing heat transfer technology for more than 80 years and has been active in the marine industry for over a century. Based on that vast wealth of experience, our engineers have designed gasketed plate heat exchangers that set entirely new standards – not only for reliability, but also for thermal performance and ease of service.
The marine industry’s most modern line of plate heat exchangers
- Superior reliability and energy efficiency
- Small size and footprint (CompactFrame™ design)
- Minimal fouling (CurveFlow™ plate distribution area)
- Easy installation and service (five-point alignment system)
- Optimized global supply chain and production for smallest environmental footprint
Suitable for any vessel, Alfa Laval gasketed plate heat exchangers excel in applications from general heating and cooling to heat recovery, condensation and evaporation. With their innovative features, they take reliability to an all-new level and save crews time and effort during maintenance. Above all, their design minimizes fouling and maximizes heat transfer capabilities, which ensures the highest possible energy efficiency.
Produtos principais

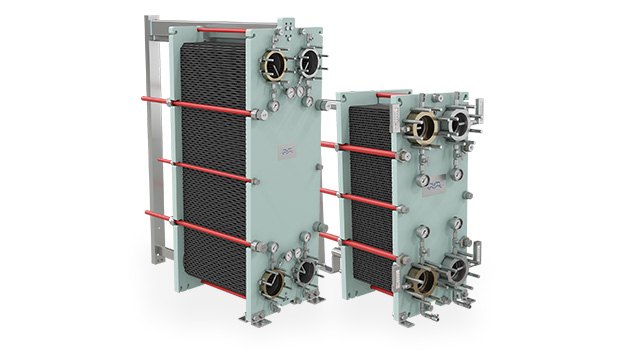

Gasketed plate heat exchangers for your vessel
Compact, reliable and energy-efficient, Alfa Laval gasketed plate heat exchangers are also safe and simple for crews to maintain. Our flexible marine line provides the right match for your needs today – with the possibility to adjust capacities later.

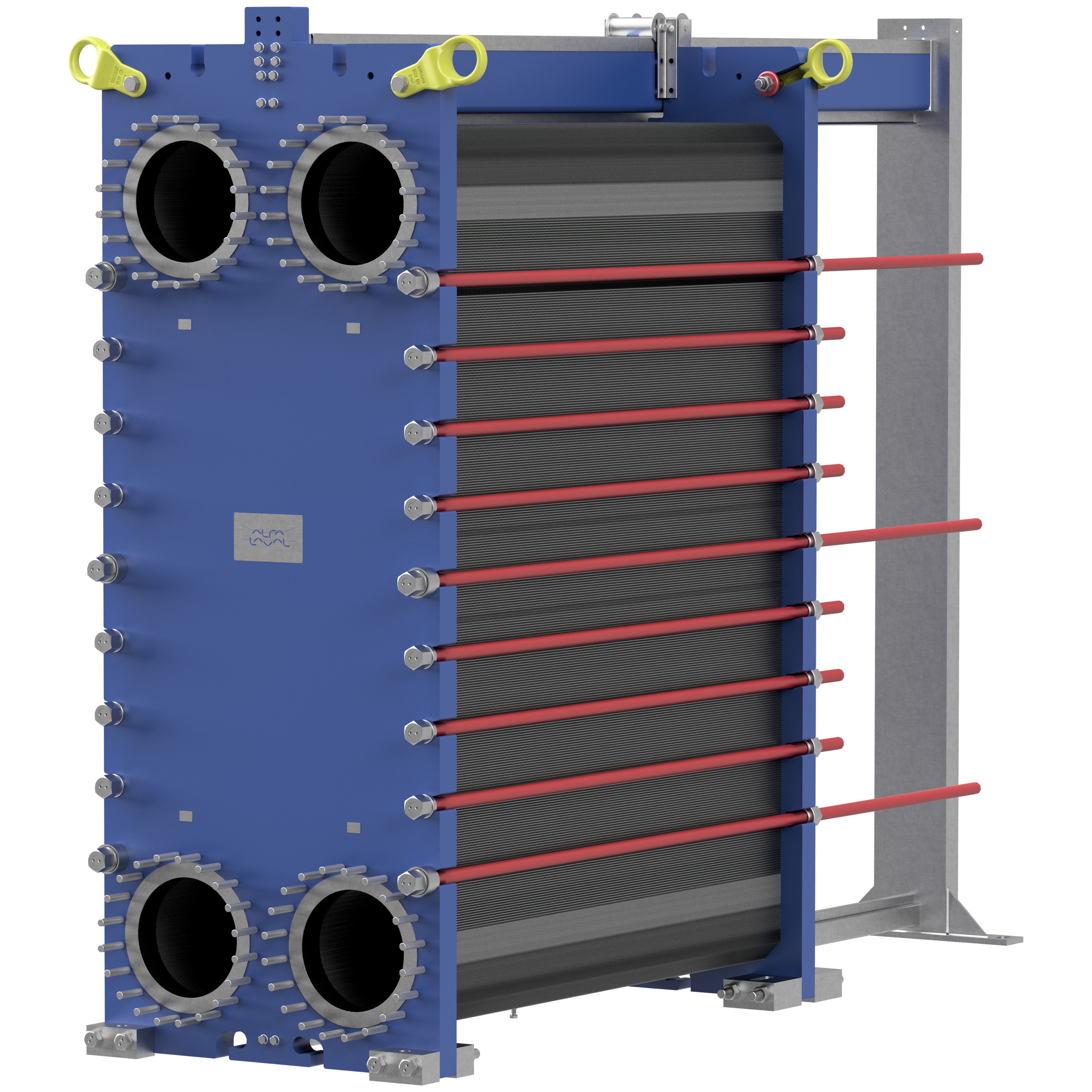

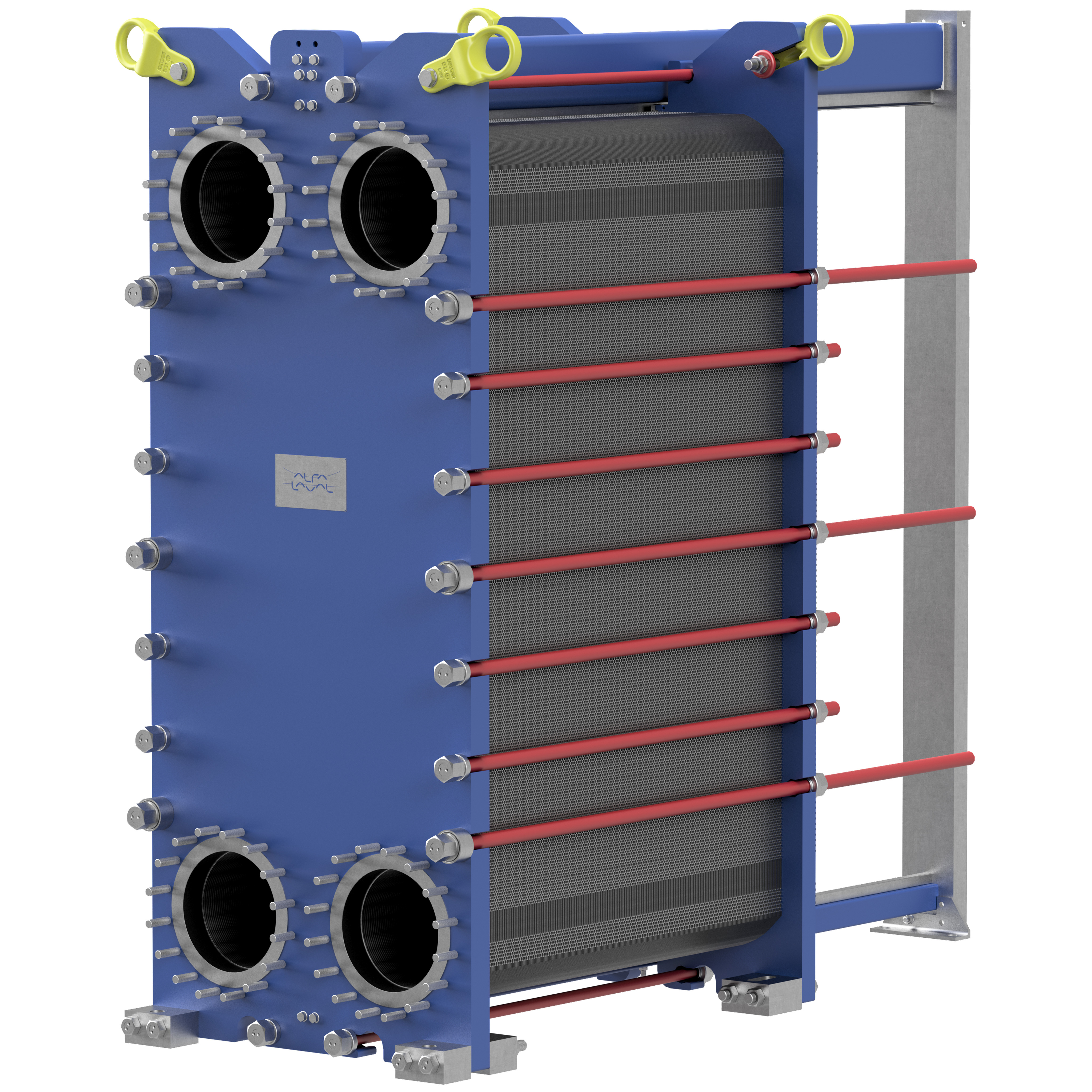

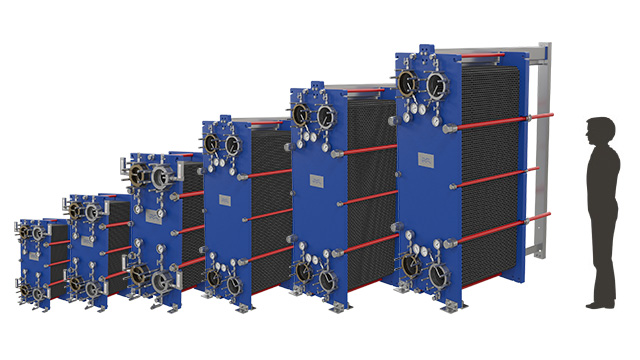

| T6 DN 60 |
T10 DN 100 |
T15 DN 150 |
T21 DN 200 |
T25 DN 250 |
T35 DN 350 |
|
|---|---|---|---|---|---|---|
| H (mm) | 890 | 1054 | 1833/1781 | 2082 | 2761 | 2875 |
| W (mm) | 320 | 470 | 610/650 | 755 | 913 | 1174 |
| Max flow rate (m3/h) | 60 | 160 | 370 | 650 | 1000 | 1970 |
| Capacity (kW) – water duty with LMTD 6 | 800 | 3 000 | 9 000 | 18 000 | 28 000 | 35 000 |
Como funciona
A área de transferência de calor de um trocador de calor a placas gaxetado consiste em uma série de placas corrugadas, montadas entre uma estrutura e placas de pressão para reter a pressão. As juntas atuam como vedantes entre as placas. Os fluidos normalmente correm contra a corrente pelo trocador de calor. Isso fornece o desempenho térmico mais eficiente e permite uma aproximação de temperatura muito próxima, ou seja, a diferença de temperatura entre o meio do processo de saída e o meio de serviço de entrada.

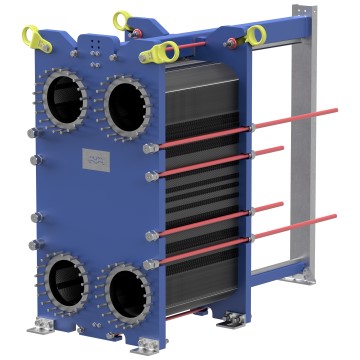

Alfa Laval liquid/liquid gasketed plate-and-frame heat exchanger
Features that make the difference
The Industrial line is equipped with features that turn this high-performance family into efficient and reliable workhorses that are easy to service and maintain over the whole product lifecycle.
For efficiency
By improving the efficiency of your heat exchanger, you can maximize production and minimize energy consumption to reduce your power bill and improve your environmental footprint.
See product animations below or get more information and listen to our technical experts.
CurveFlow™
Àrea de distribuição
Melhora o fluxo do meio e minimiza o risco de obstrução.
OmegaPort™
Aberturas não circulares
Melhora o fluxo do meio e a eficiência térmica.
FlexFlow™
Design da placa
Melhora a eficiência térmica e otimiza a utilização da queda de pressão.
For reliability
We are always looking to increase the reliability of every aspect of our gasketed plate heat exchangers.
We focus on durable designs based on robust materials and safe manufacturing processes.
See product animations below or get more information and listen to our technical experts.
PowerArc™
divisor do padrão de placas
Aumenta a rigidez da placa por mais tempo de vida útil.
Alinhamento de cinco pontos
Garante o posicionamento confiável da placa e manutenção fácil de unidades grandes.
SteerLock™
alinhamento de placas
Garante o posicionamento confiável da placa e manutenção fácil.
For serviceability
The simple opening and closing of the plate-and-frame design with gaskets enables hassle-free inspection and service. It also enables you to easily adapt the unit to new process conditions.
See product animations below or get more information and listen to our technical experts.
ClipGrip™
acessório de junta
Garante vedação perfeita e manutenção sem problemas.
Rolete em "T"
Oferece uma unidade mais baixa fácil de manter.
Caixas de rolamento
Garante uma unidade fácil de abrir para uma manutenção mais tranquila e eficiente.
Estrutura compacta
Facilita a manutenção e minimiza os requisitos da área de serviço.
