Válvulas de assento duplo

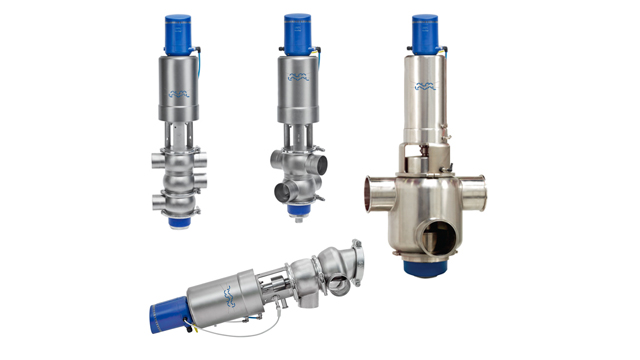

Modular and versatile, Alfa Laval mixproof valves are double block-and-bleed valves that handle the simultaneous flow of two different products or fluids through the same valve at critical pipeline junctions without the risk of cross-contamination. These Alfa Laval mixproof valves provide exceptional operation, enhanced cleanability and high customizability to meet any hygienic process requirement. What you get is more uptime and the lowest total cost of ownership.
Safe, efficient, hygienic handling of two fluids through the same valve without the risk of cross-contamination
- Maximum product safety, minimized risk of cross-contamination
- Enhanced product yield due to cost-effective, spillage-free operation
- Optimized plant efficiency and enhanced cleanability
- More uptime due to spillage-free design with double lip seal, built-in leakage detection and leakage chamber
- Fully configurable with a broad range of models and options to meet virtually any hygienic processing requirement
Rely on Alfa Laval mixproof valves for more uptime, greater flexibility, reliable operation, optimized maintenance, and easy cleanability. Select only for the features and functionality you require now; modularity lets you easily upgrade the valves to meet your changing needs. Plus enjoy an exceptional service life and reduced utility costs from each of mixproof valves. Hygienic, high purity, aseptic and specialized versions are available for use across the dairy, food, beverage, home-personal care, and biotech and pharmaceutical industries. To better manage your mixproof valves, pair them with Alfa Laval sensing an control units.
How does a mixproof valve work?
The Alfa Laval Unique mixproof valve is a normally closed (NC) valve controlled from a remote location by means of compressed air. The valve has two independent plugs and seals to separate the flow of liquids and prevent cross-contamination; the space between the seals forms a leakage chamber at atmospheric pressure during every working condition. In the rare event that leakage may occur, product flows into the leakage chamber and exits through the bottom outlet for easy detection. When the valve is open, the leakage chamber is closed. The product then flows from one line to the other.
Clientes que aprovam
TINE SA, Norway
“We recommend Alfa Laval equipment, such as LKH pumps and Unique mixproof valves, because we know that they are reliable, hygienic and easy to maintain.”
Owe Barsten, Sales Manager, Components & Service, Skala AS.
Moloko Gorodets Dairy, Russia
We can count on continuous operations, thanks to the superior quality, reliability and service and support of Alfa Laval equipment, automation technology and components."
Mr. Gennadiy Zolotuhin, Master mechanic, Moloko Gorodets Dairy’s.
Queremos fazer da sua empresa a nossa próxima história de sucesso. Conte com nosso empenho!
Entre em contato conosco!
Obtenha a visão geral completa
Close at hand catalogue about valves
At your fingertips: Alfa Laval hygienic valves to ensure the most efficient flow of fluids through your process lines. Our ‘Close at hand’ catalogue details everything you need to determine the optimal flow solution for your processes. What you get is no risk of cross-contamination, increased safety, more uptime and cost savings, and greater productivity.
Serviços para válvulas higiênicas
Para garantir tempo de atividade contínuo para seus processos higiênicos, prolongue a vida útil de suas válvulas higiênicas. Com a Alfa Laval como sua parceira de serviços, você tem acesso à nossa rede global de serviços e especialistas e suporte local quando necessário. Conte com nossa ampla gama de serviços para otimizar seus processos – a qualquer hora, em qualquer lugar.
Faça crescer o seu negócio. Otimize seus sistemas de manuseio de fluidos - de forma sustentável
Torne seus processos mais eficientes e sustentáveis, ao mesmo tempo em que alcança a conformidade regulatória e garante o sucesso de seus negócios. Com a Otimização Sustentável da Alfa Laval, você pode economizar até 80% em economia de energia, bem como 90% em economia de água e meios de limpeza, minimizando o desperdício. Bom para as pessoas. Bom para o planeta. Bom para rentabilidade.
Dê vida à sua estratégia de sustentabilidade
Obtenha mais economia de energia e água e reduza as emissões de suas linhas de processamento higiênicas. Nosso boletim informativo mensal traz histórias sobre como a Alfa Laval pode apoiá-lo na melhoria do desempenho ambiental nas indústrias de laticínios, alimentos, bebidas, higiene pessoal e farmacêutica. O que é bom para as pessoas e para o planeta também é bom para o seu negócio.
